Flag and Halyard Management System
The complete system for reliable tower flag installations, delivering exceptional performance and simplified maintenance.

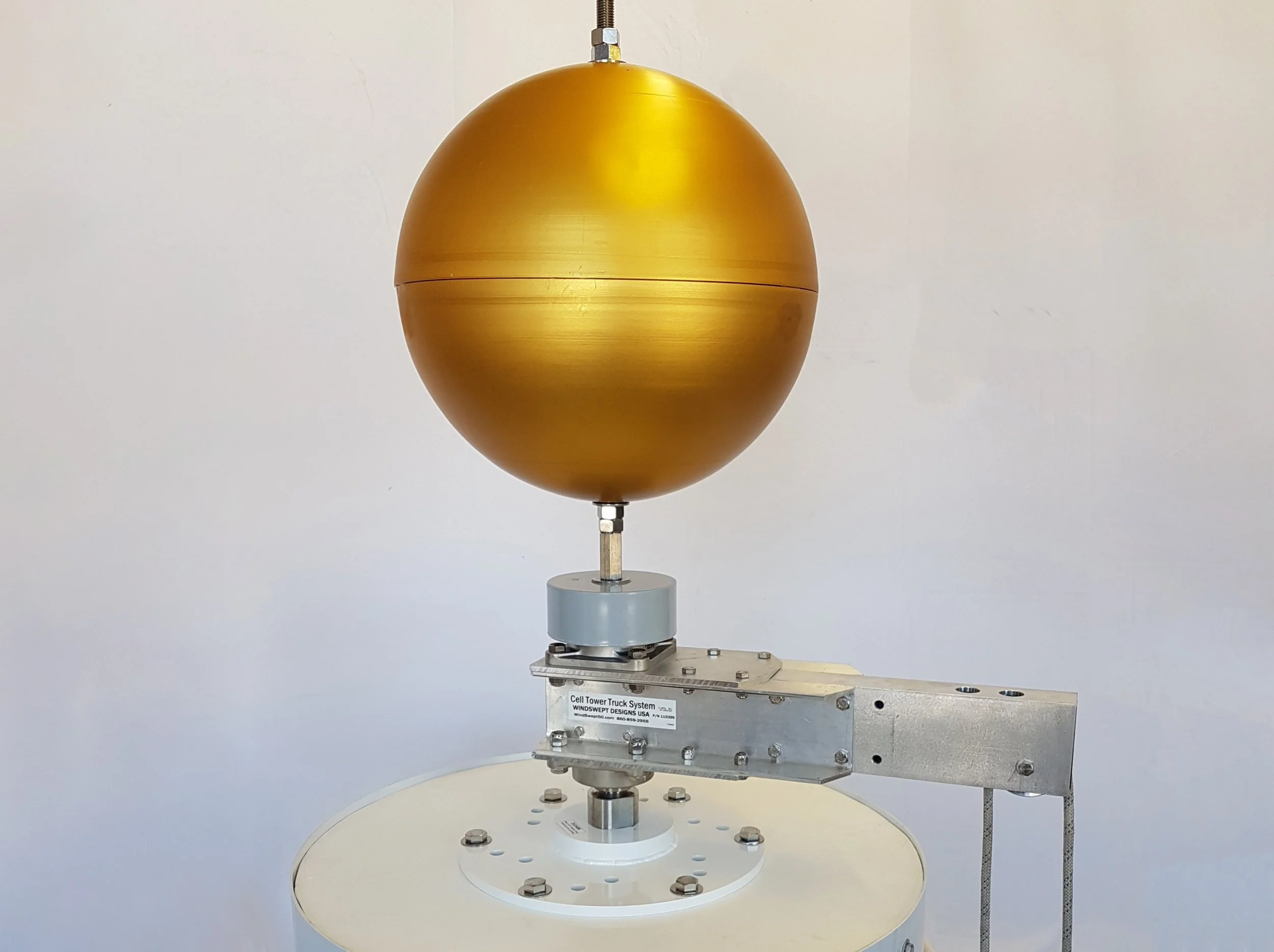

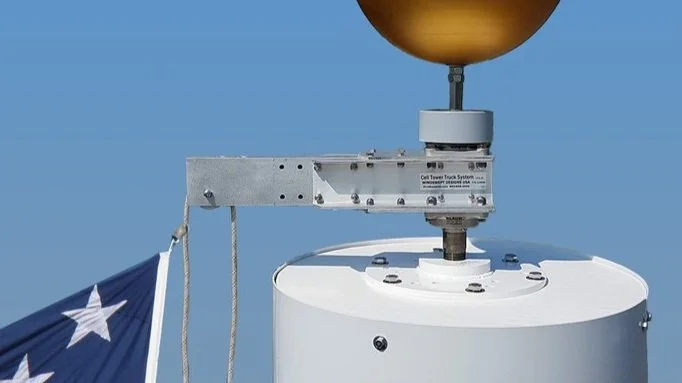

Our flag and halyard management system combines three precision-designed components to create the most reliable, maintenance-friendly flag and halyard solution on the market today. Say goodbye to rusty hardware, difficult maintenance, and frequent replacements. We've designed every element of this system with cell tower professionals in mind, understanding the unique challenges you face with traditional equipment. The SwingArm Truck, Adapter Plate, and Finial Ball work seamlessly together to provide an attractive, durable solution built to withstand years of harsh weather while making maintenance a breeze. Whether upgrading existing towers or planning new installations, our complete system offers the dependability and flexibility you need for today's demanding cellular infrastructure.

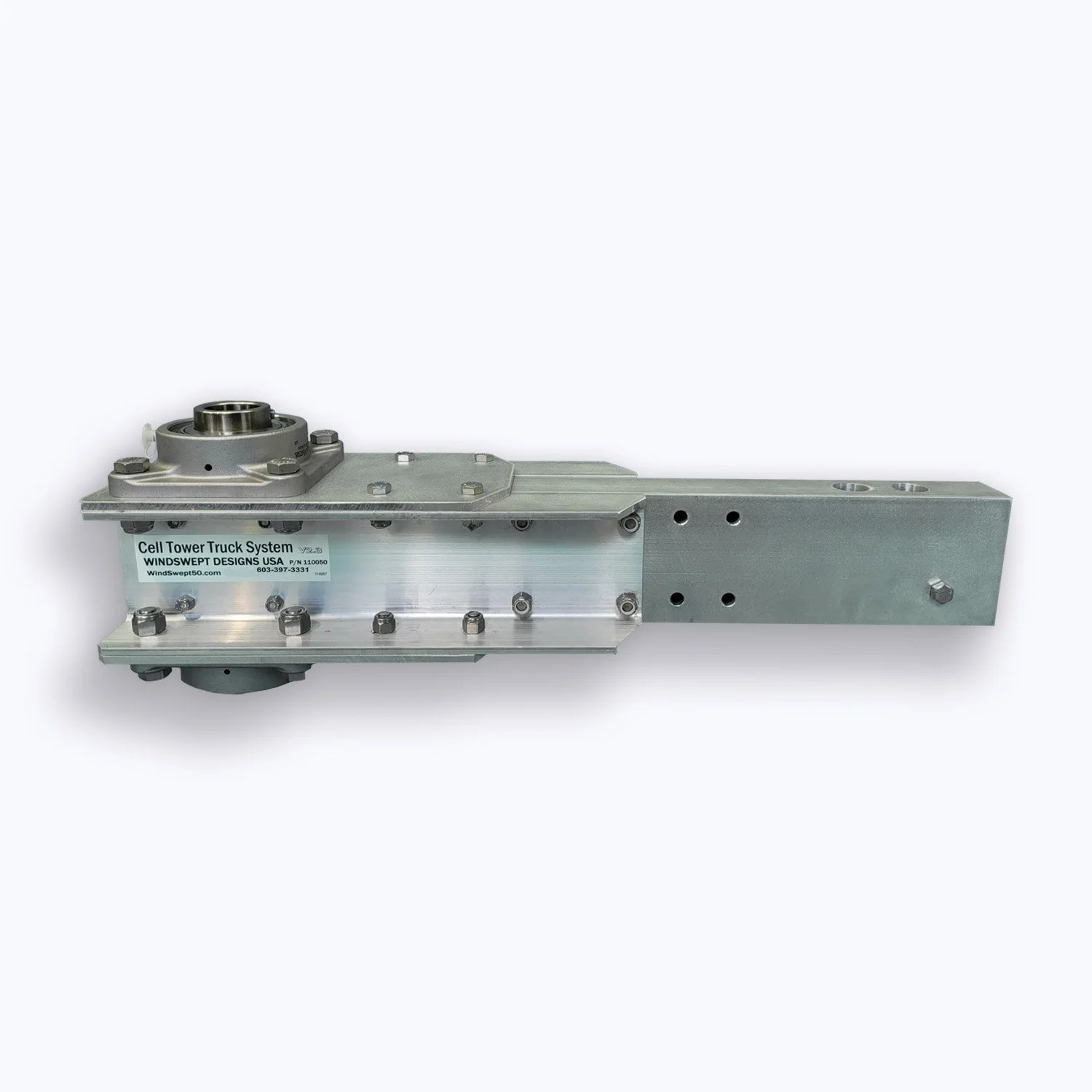

SwingArm Truck
The SwingArm Truck is the heart of our flag display system, designed specifically for the unique challenges of cell tower installations. Unlike competing products that rust, bind up, or stay permanently fixed in place, our SwingArm Truck swivels smoothly with the wind to reduce stress on your halyard system. It can be flipped upright when work is needed on towers with cylindrical shrouds, so there will be no more fighting with fixed hardware during service calls!
We've built this truck to last with all-aluminum and stainless steel construction, including sealed roller bearings that ensure smooth operation for years without maintenance. The adjustable sliding beam accommodates different tower diameters and even works with bump-out expansion projects, making this a truly versatile solution. Heavy-duty spindles provide the strength needed for long-reach applications, while the removable center beam allows easy circular shroud removal.
If you're tired of replacing rusted, seized-up flag hardware every few years, our SwingArm Truck delivers the performance and longevity you've been looking for.
Features
Adjustable sliding beam for different tower diameters, including bump-out expansion projects
100% compatible with WindBand protection
All aluminum and stainless steel construction for long, trouble-free life
Stainless sealed roller bearings for long life
Heavy-duty spindles for long-reach trucks
Removable center sliding beam for easy circular shroud removal
Kit Includes:
Truck Body
The base of the system

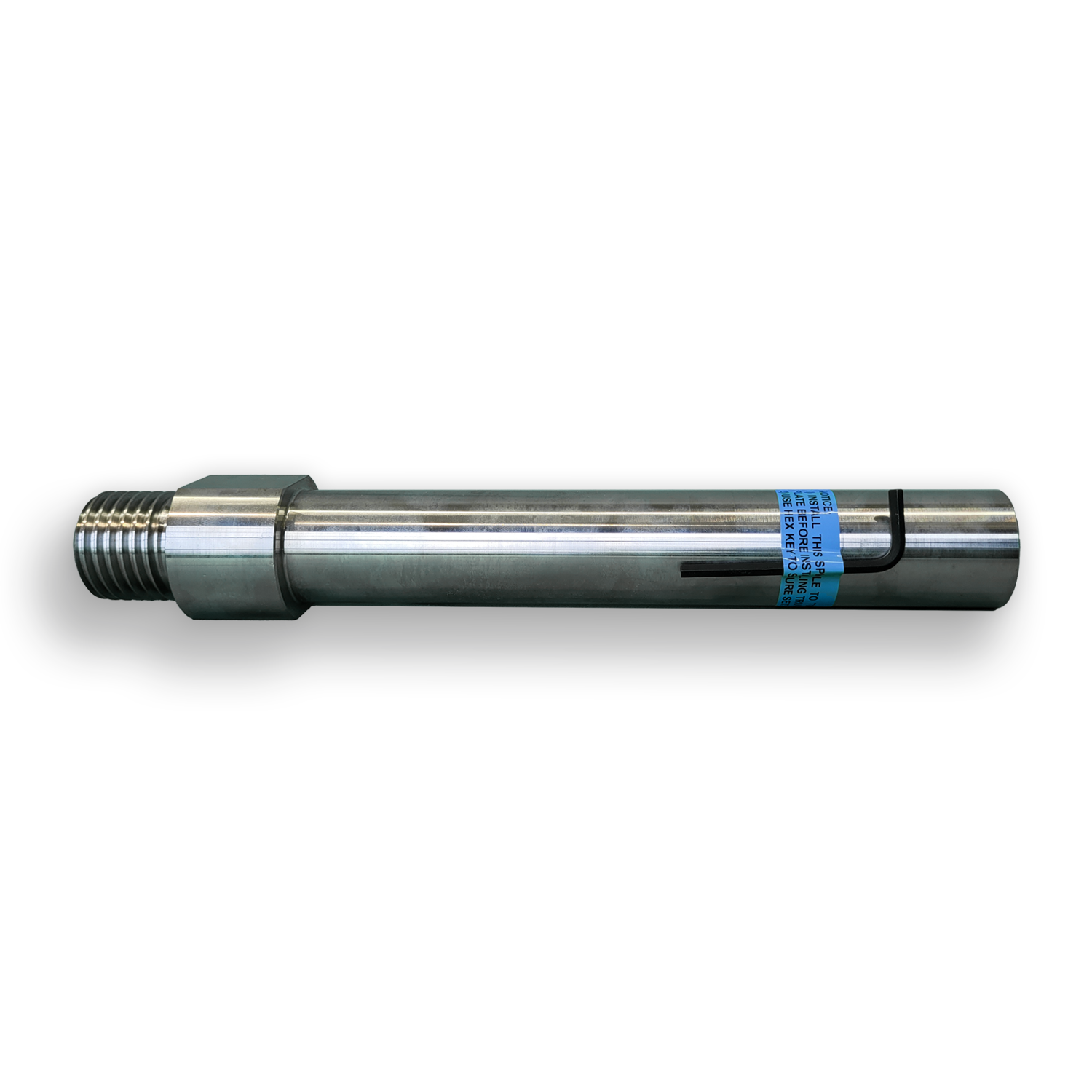

Spindle
Allows for a seamless swivel
Threaded Rod
For finial connection
Drip Cap
Keeps elements off the bearings
SwingArm Truck Sizing and Selection Guide
STANDARD (110050)
Tower Diameter Range
(without WindBand)
24” (61cm) - 42” (107cm)
Spindle Thread Size
1 1/2 in NPT
Compatible Adapter Plate
N/A
Material/Finish
Brushed Stainless Steel
Dimensions
Length: 22.25-28.25”
Height: 15.20”
Weight
40lbs
STANDARD (110344)
Tower Diameter Range
(without WindBand)
24” (61cm) - 42” (107cm)
Spindle Thread Size
1 1/2 in - 6 UNC
Compatible Adapter Plate
110445 - 1 1/2”-6 UNC
Material/Finish
Brushed Stainless Steel
Dimensions
Length: 22.25-28.25”
Height: 15.20”
Weight
40lbs
MEDIUM (110399)
Tower Diameter Range
(without WindBand)
39” (99cm) - 58” (147cm)
Spindle Thread Size
2 1/2 in - 6 UNC
Compatible Adapter Plate
110590 - 2 1/4”-6 UNC
Material/Finish
Brushed Stainless Steel
Dimensions
Length: 29.75-35.25”
Height: 15.20”
Weight
42lbs
LONG (110419)
Tower Diameter Range
(without WindBand)
54” (155cm) - 73” (185cm)
Spindle Thread Size
2 1/2 in - 6 UNC
Compatible Adapter Plate
110590 - 2 1/4”-6 UNC
Material/Finish
Brushed Stainless Steel
Dimensions
Length: 37.25-43.25”
Height: 15.20”
Weight
43lbs
All SwingArm Truck sizes allow for 1 1/2 inch center beam adjustment increments.

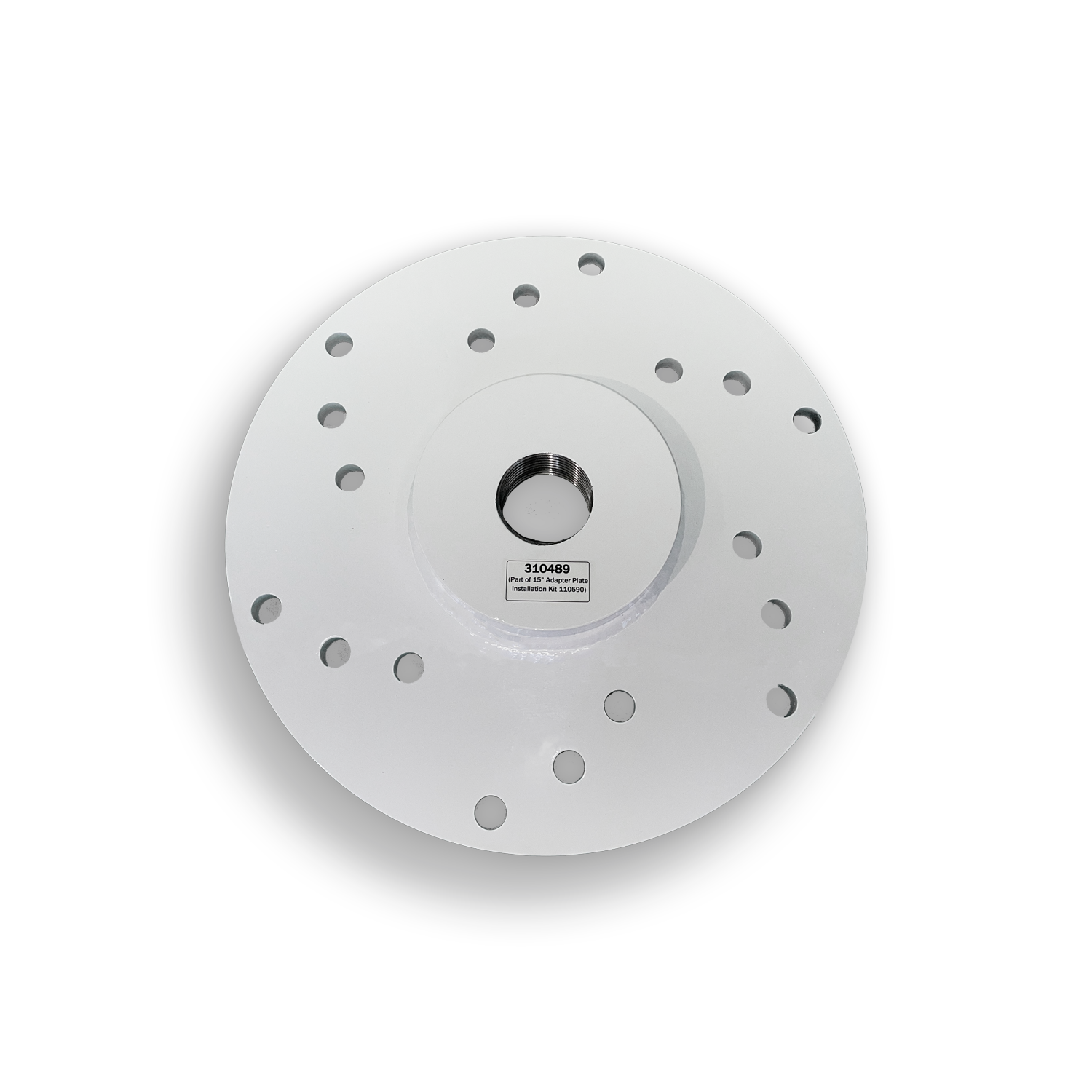

Adapter Plate
For new and existing towers
Installing new hardware on an existing cell tower shouldn't require a complete rebuild. Our Adapter Plate makes upgrading to our SwingArm Truck system incredibly straightforward, even when working around existing equipment.
What sets our Adapter Plate apart is its thoughtful design that works with your tower, not against it. The included spacers lift the plate above existing obstructions, meaning you don't have to remove the old boss, which is a huge time-saver in the field. We've designed it to adapt easily to most existing tower configurations, taking the guesswork out of compatibility.
Every Adapter Plate comes complete with a comprehensive fastener kit and all necessary spacers, so there's no scrambling for the right hardware during installation. We even include a transfer punch to ensure perfectly aligned drilling that won’t damage the powder coat finish. It's these small details that make a big difference when you're working at height.
Features
Spacers lift the adapter plate above obstructions
Easily adapts to most existing towers
Includes fastener kit and spacers
Includes transfer punch for accurate drilling
Specifications
Part Numbers: 110445 & 110590
Material: High-strength A36 steel
Finish: Durable powder coat for long life
Dimensions: 15” dia. (38 cm) by 1.5” H (3.8 cm)
Weight: 32 lbs
Fasteners: 5/8 stainless steel
Spacers Included For a Quick Install
Install the adapter plate onto the tower directly or use high-strength spacers to leave the existing truck boss intact, reducing installation time.
Kit Includes:
Adapter Plate
Spacers, SS Fasteners, and Transfer Punch
Adapter Plate Sizing and Selection Guide

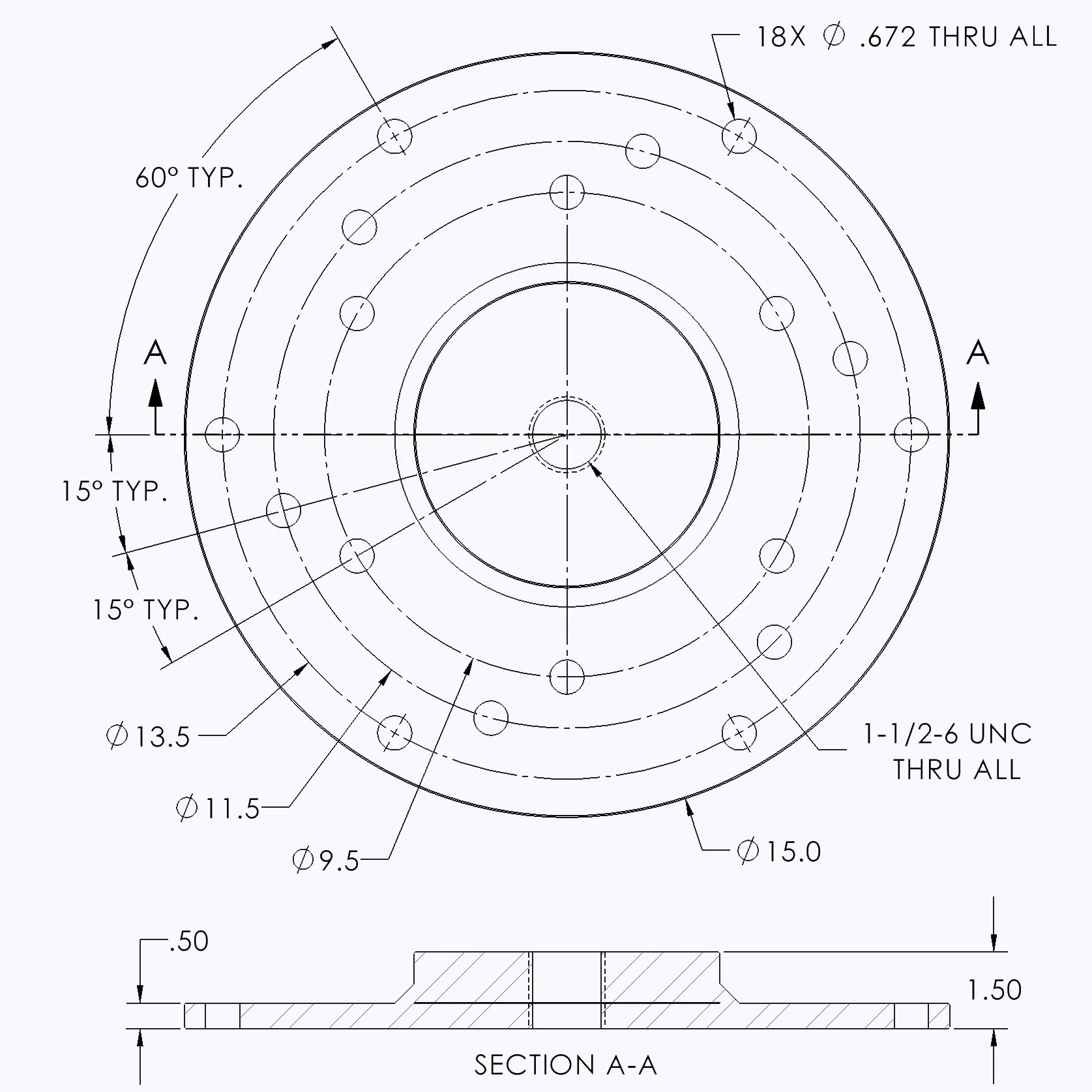

1 1/2”- 6 UNC (110445)
For Standard Length Trucks Only

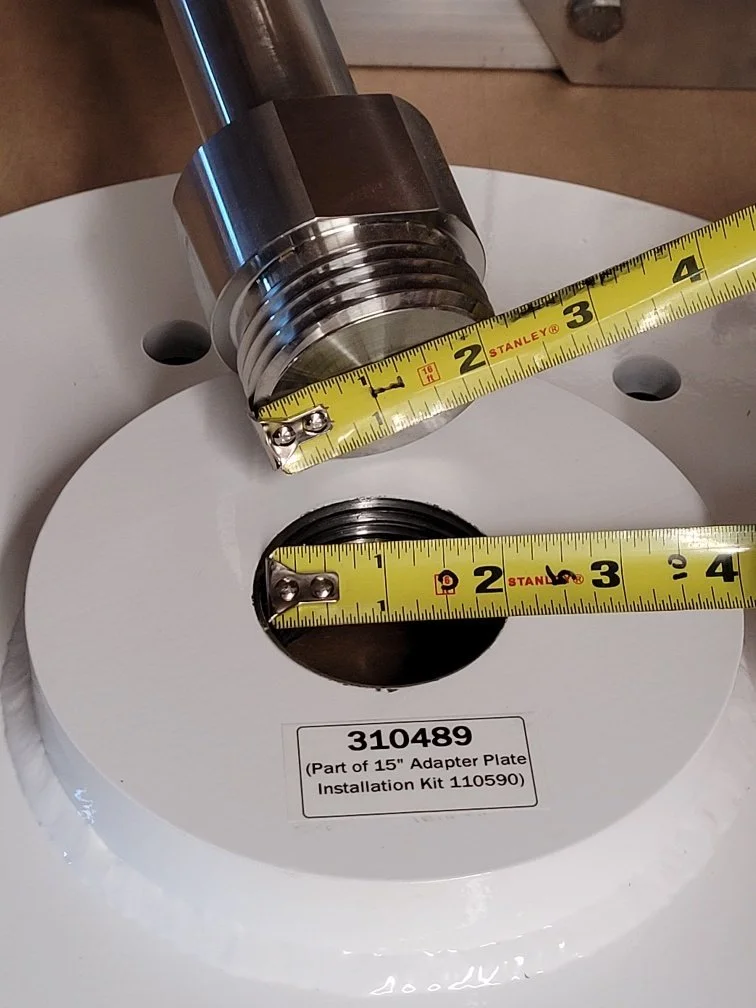

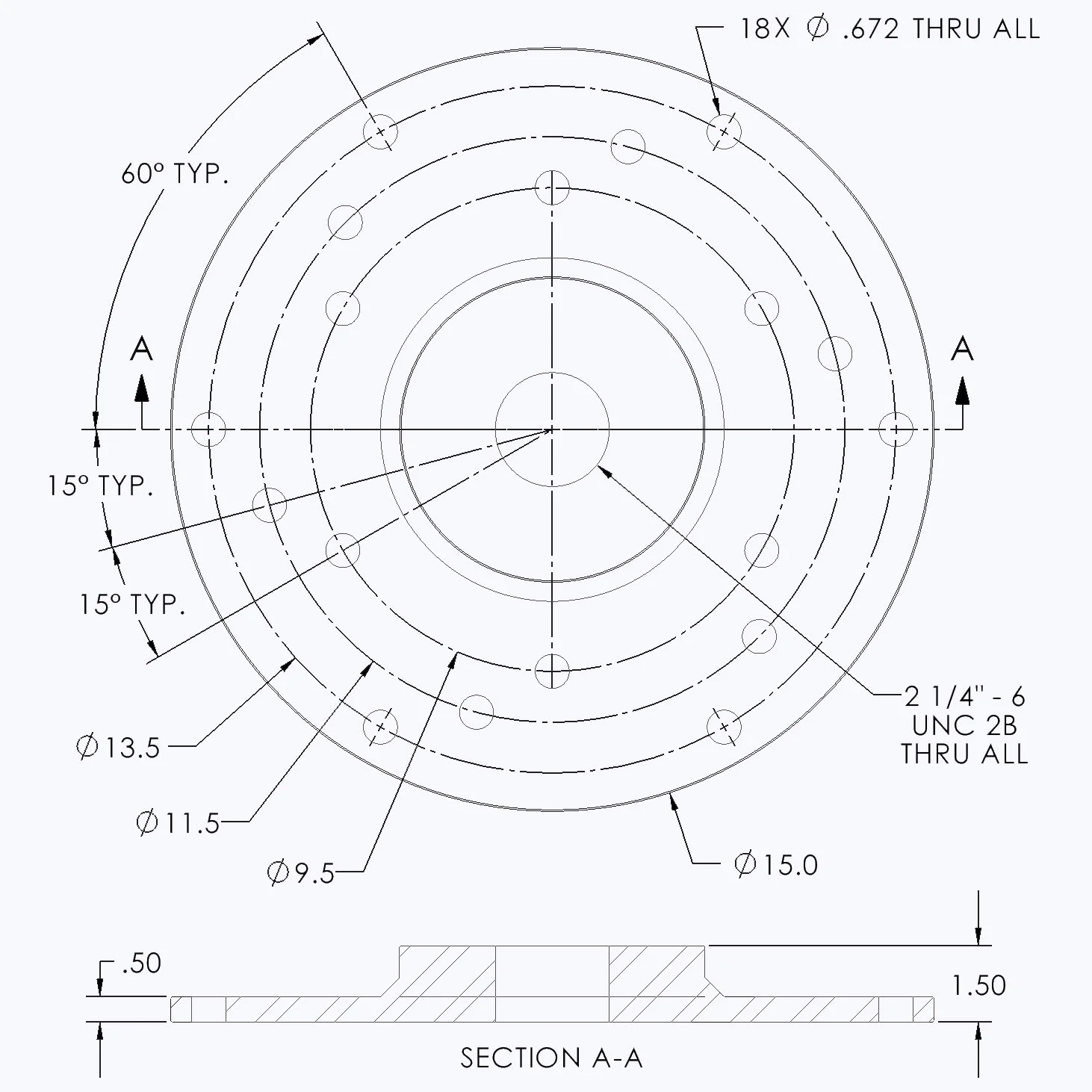

2 1/4”-6 UNC (110590)
For Medium and Long Length Trucks Only

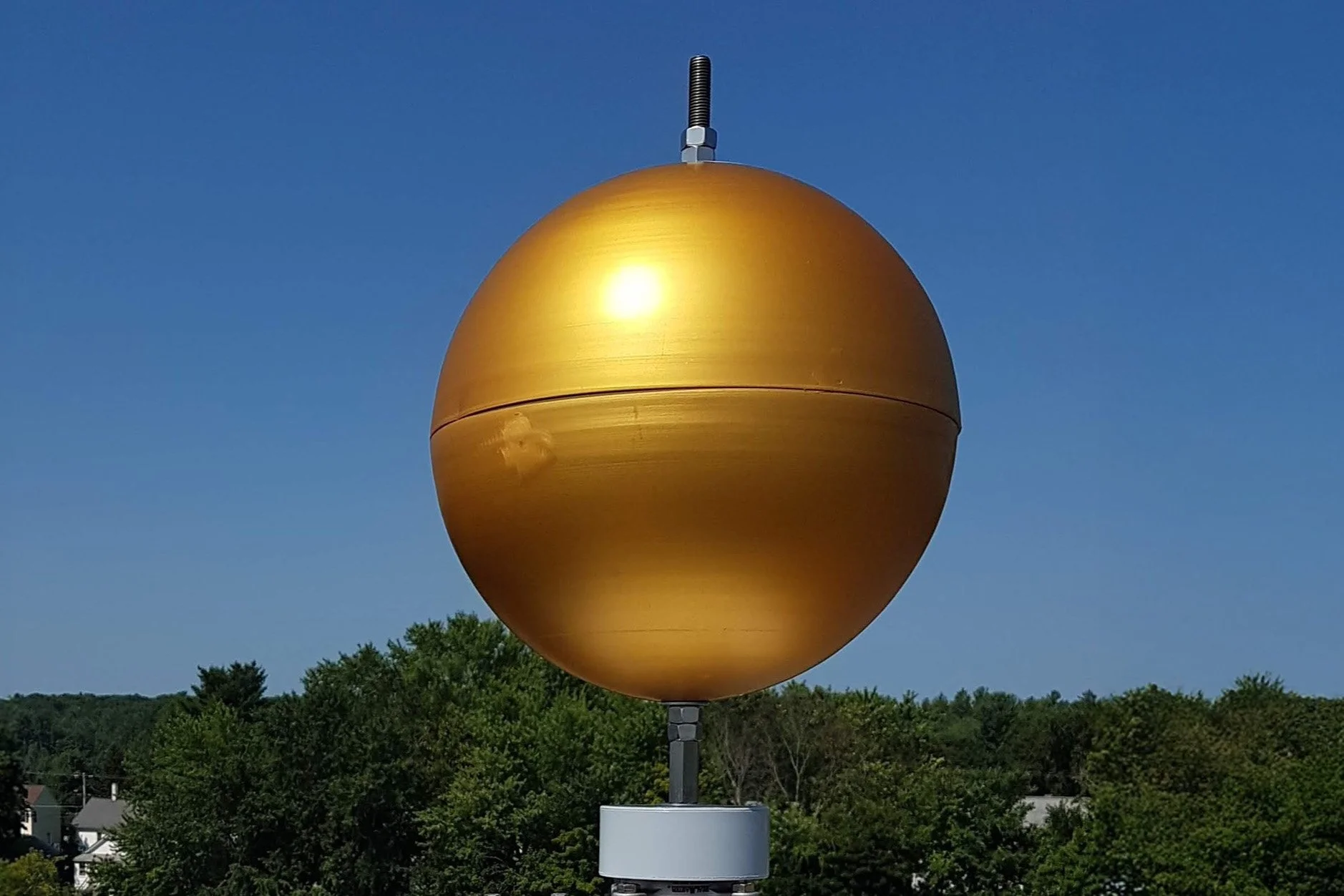

Finial Ball
Add the finishing touches to your concealed array tower
Our gold Finial Ball is the perfect finishing touch. It adds a professional, polished look to your cell tower and serves an important functional role in your flag display system.
Crafted from spun aluminum, the Finial Ball combines lightweight construction with impressive strength and durability. We've finished it with a striking gold anodization that maintains its brilliant appearance year after year, even in harsh environmental conditions.
Thoughtful design details include integrated drain holes to prevent water collection and internal corrosion, while the 3/4" diameter threaded rod mounting system makes installation quick and secure. The Finial Ball integrates perfectly with our SwingArm Trucks for a cohesive appearance.
When you want your towers to stand out with a touch of distinction, our Finial Ball delivers both the visual appeal and rugged construction that professional installations demand.
Features
Spun aluminum is lightweight, rugged, and strong
Gold Anodized for an attractive and durable finish
Integrated drain holes prevent water collection
Mounts on a 3/4” diameter threaded rod
Easily adapts to WindSwept SwingArm Trucks
Specifications
Part Number: 110561
Material: Spun aluminum and SS fasteners
Finish: Mil Spec gold anodize
Dimensions: 18 in (45.7 cm) diameter
Weight: 12 lbs (5.5 kg)
