WindBands

from $174.00

Keeps concealment shrouds on the tower when fasteners loosen or fail.

Concealment towers take a beating. UV, wind-driven vibration and constant flexing work fasteners loose and crack shrouds over time, and a shroud that comes off can land on people, cars and property below.

The WindBand wraps the shroud and holds it on, even with missing fasteners or cracks. Three WindBands hold over 3,900 lbs on a typical 10 ft shroud, designed for 90+ mph winds. Every part is RF transparent and UV protected, so bands go wherever the shroud needs them.

Choose the size by tower diameter: WindBand 50 for 18 to 50 in, WindBand 70 for over 50 to 70 in, and WindBand 100 for over 70 to 100 in. Each installs in under 5 minutes with the Lasso Loop and comes off and goes back on in about a minute every service visit. Reusable indefinitely, with nothing to re-tape.

Size:

Keeps concealment shrouds on the tower when fasteners loosen or fail.

Concealment towers take a beating. UV, wind-driven vibration and constant flexing work fasteners loose and crack shrouds over time, and a shroud that comes off can land on people, cars and property below.

The WindBand wraps the shroud and holds it on, even with missing fasteners or cracks. Three WindBands hold over 3,900 lbs on a typical 10 ft shroud, designed for 90+ mph winds. Every part is RF transparent and UV protected, so bands go wherever the shroud needs them.

Choose the size by tower diameter: WindBand 50 for 18 to 50 in, WindBand 70 for over 50 to 70 in, and WindBand 100 for over 70 to 100 in. Each installs in under 5 minutes with the Lasso Loop and comes off and goes back on in about a minute every service visit. Reusable indefinitely, with nothing to re-tape.

Ships UPS GroundIn-stock items usually ship within 5 business days
Purchase orders welcomeEmail your PO to info@2KRsystems.com
Continental US onlineOutside it? Contact us for shipping
Ordering for a whole site?Build the parts list in the Site Kit Builder
Which size and how many?

Pick the size by tower diameter. Use 2 WindBands per shroud under 8 ft, 3 for 8 to 12 ft, and 4 for over 12 to 16 ft. Add one Lasso Loop per site and one Installation Toolkit per crew.

Tower diameterWindBandLasso Loop
18 to 50 in (46 to 127 cm)WindBand 50 · 110757 · $174Lasso Loop 50 · 110801 · $24.75
Over 50 to 70 in (127 to 178 cm)WindBand 70 · 110758 · $199Lasso Loop 70 · 110809 · $27.55
Over 70 to 100 in (178 to 254 cm)WindBand 100 · 110847 · $239Lasso Loop 100 · 110873 · $29.75

Not sure of a measurement? Send us your tower drawings.

Specifications
Part numbers110757 (WindBand 50), 110758 (WindBand 70), 110847 (WindBand 100)
Tower diameter18 to 100 in (46 to 254 cm) in three sizes
Ultimate strengthOver 3,900 lbs (1,770 kg) on a typical 10 ft shroud with 3 WindBands
Wind ratingDesigned for 90+ mph wind speeds. Actual performance varies with site conditions
Shroud typeSectional composite, fiberglass and polymer shrouds
MaterialsPolyester webbing strap. Black acetal cam buckle and strap keepers. UV-resistant white polycarbonate main buckle and D-ring (2026+)
RFEvery component is RF transparent
Service lifeDesigned for 10+ years, UV protected
Placement2, 3 or 4 WindBands per shroud
PaintingWater-based acrylic paint, see the User Guide
Features
  • Holds the shroud on even with missing fasteners or cracks
  • Under 5 minutes to install with the Lasso Loop, no circling the tower
  • About 1 minute to remove and reinstall after service
  • Reusable indefinitely, nothing to re-tape
What's in the box
  • WindBand in the size you choose
  • Strap Hooks, peel and stick: 2 with the WindBand 50, 4 with the WindBand 70 and 100
  • Step-by-step instructions with QR links to the videos
Downloads
WindBand Product Data Sheet210616 REV 02 · PDF · 4 pages
Download PDF
WindBand Installation and User Guide210607 REV 03 · PDF · 7 pages
Download PDF
WindBand Reinstallation Guide210627 REV 00 · PDF · 1 page
Download PDF

Goes with it

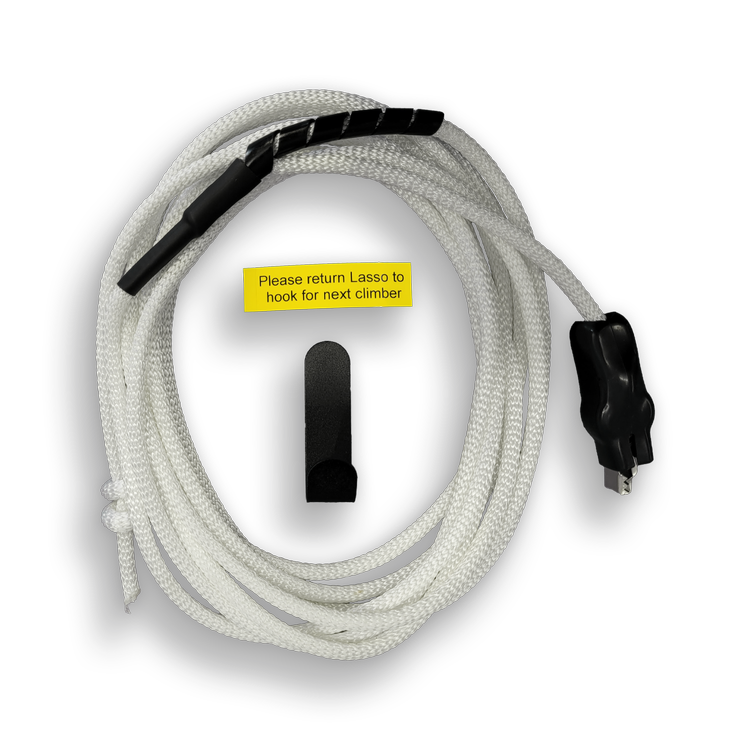

Lasso Loop1 per site, sized to the WindBandFrom $24.75

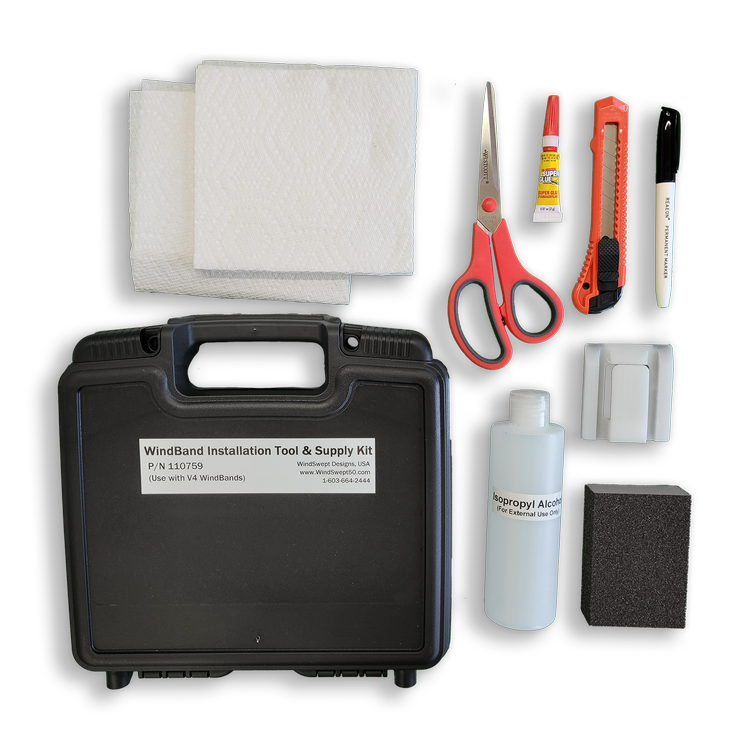

Installation ToolkitEvery installation component in one case$109

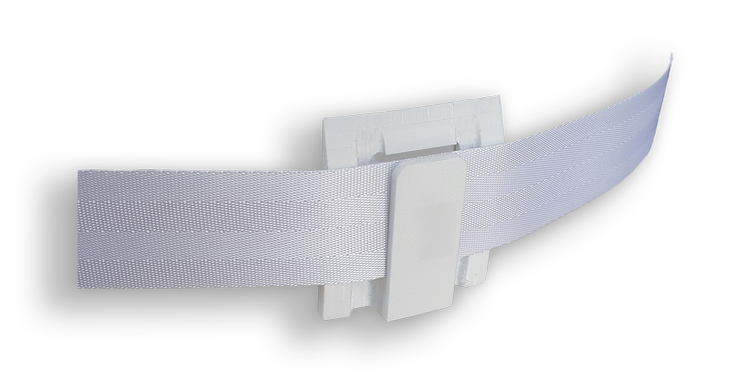

Strap Hook (Replacement)Peel and stick$9

Ordering for a whole site?

The Site Kit Builder lists every part for your tower with part numbers and prices. Email it to us or order here.

Open the Site Kit Builder
